4 Managing Files and Sets

4.1.1 The Decoding Cache

To save computational resources, Live keeps the decoded sample files of compressed samples in the cache. Maintenance of the cache is normally not required, as Live automatically deletes older files to make room for those that are new. You can, however, impose limits on the cache size using the File & Folder Preferences’ Decoding Cache section. The cache will not grow larger than the Maximum Cache Size setting, and it will always leave the Minimum Free Space on the hard disk. Pressing the nearby Cleanup button will delete all files not being used by the current Live Set.

4.1.2 Analysis Files (.asd)

An analysis file is a little file that Live creates when a sample file is brought into the program for the first time. The analysis file contains data gathered by Live to help optimize the stretching quality, speed up the waveform display and automatically detect the tempo of long samples (see ‘Syncing Longer Pieces’).

When adding a long sample to a project, Live might tell you that it cannot play the sample before it has been analyzed. This will not happen if the sample has already been analyzed (i.e., Live finds an analysis file for this sample), or if the Record, Warp & Launch Preferences’ Auto-Warp Long Samples preference (see ‘Time-Warping Samples’) has been deactivated.

An analysis file can also store default clip settings for the sample:

Clicking the Clip View’s Save button (see ‘Saving Default Audio Clip Settings with the Sample’) will store the current clip’s settings with the sample’s analysis file. The next time the sample is dragged into Live, it will appear with all its clip settings intact. This is particularly useful for retaining Warp Marker settings with the sample. Storing default clip settings with the analysis file is different from saving the clip as a Live Clip.

While analysis files are a handy way to store default information about a particular sample’s settings, keep in mind that you can use different settings for each clip within a Live Set — even if those clips refer to the same sample on disk. But if you drag a new version of the sample into a Live Set, Live will use the settings stored in the analysis file for the newly created clip.

The analysis file’s name is the same as that of the associated sample, with an added “.asd“ extension. Live puts this analysis file in the same folder as the sample.

Samples that have an .asd file are displayed like this in the browser.

Samples without an .asd file look like this.

The analysis files themselves do not appear in Live’s browser.

Note that you can suppress the creation of .asd files by turning off the Create Analysis Files option in the File & Folder Preferences. All data (except for the default clip settings) can be recreated by Live if the .asd file is missing, however this will take some time for longer samples.

4.1.3 Exporting Audio and Video

The File menu’s Export Audio/Video command allows you to export Live’s audio output as new samples. The resulting files can be used to burn an audio CD for listening purposes or a data CD, which could serve as a backup of your work or be used with other digital audio applications. If your set includes video, you can also use the Export Audio/Video command to export this to a new video file, which will be created in the same directory as the rendered audio files. (Note: video export is not available in the Lite and Intro Editions.) You can also upload your exported audio files directly to your SoundCloud account.

4.1.3.1 Selection Options

The Export dialog’s Rendered Track chooser offers several options for which audio signal to render:

• Main — the post-fader signal at Live’s Main output. If you are monitoring the Main output, you can be sure that the rendered file will contain exactly what you hear.
• All Individual Tracks — the post-fader signal at the output of each individual track, including return tracks and MIDI tracks with instruments. Live will create a separate sample for each track. All samples will have the same length, making it easy to align them in other multitrack programs.
• Selected Tracks Only — this is identical to the All Individual Tracks option, but only renders tracks that were selected prior to opening the Export dialog.
• (single tracks) — the post-fader signal at the output of the selected track.

The other Selection fields determine the start time and length of the exported material:

• Render Start — sets the position at which rendering will begin.
• Render Length — determines the length of the rendered sample.

Tip — a fast way to set both the Render Start and Length values is to select a range of time in the Arrangement View prior to invoking the Export Audio/Video command. But remember — a rendered audio file contains only what you heard prior to rendering. So, for example, if you’re playing back some combination of Session View clips and Arrangement material, then that is what will be captured in your rendered file — regardless of which view is active when you render.

4.1.3.2 Rendering Options

The Export dialog offers several audio rendering options:

• Include Return and Main Effects – If this is activated, Live will individually render each selected track with any return tracks used by that track, as well as effects used in the Main track. This is especially useful when rendering material for a live performance, or when providing stems to a mixing engineer or remix artist.
• Render as Loop — If this is activated, Live will create a sample that can be used as a loop. For example, suppose your Live Set uses a delay effect. If Render as Loop is on, Live will go through the rendering process twice: The first pass will not actually write samples to disk, but add the specified delay effect. As the second pass starts writing audio to disk, it will include the delay “tail“ resulting from the first pass.
• Convert to Mono — If this is activated, Live will create a mono file instead of a stereo file.
• Normalize — If this is activated, the sample resulting from the render process will be normalized (i.e., the file will be amplified so that the highest peak attains the maximum available headroom).
• Create Analysis File — If this is activated, Live will create an .asd file that contains analysis information about the rendered sample. If you intend to use the new sample in Live, check this option.
• Sample Rate — Note that your choice of sample rate works as follows: if you select a sample rate equal to or higher than the rate you’re using in your project (as set in the Audio tab of Live’s Preferences), Live will export in a single step, at the sample rate you’ve chosen in the Export dialog. If you export at a sample rate that is lower than your current project sample rate, Live will first export at the current project sample rate and then downsample the file in a second step using a high-quality process. Note that this may take a few moments.
• Upload Audio toSoundCloud — If activated, a helper application will launch that will allow you to upload your exported audio file to SoundCloud.

4.1.3.3 Encoding Options

• Encode PCM — If activated, a lossless audio file is created.
• File Type — WAV, AIFF, and FLAC formats are available for PCM export.
• Bit Depth,Dither Options — If you are rendering at a bit depth lower than 32-bit, choose one of the dither modes. Dithering adds a small amount of noise to rendered audio, but minimizes artifacts when reducing the bit depth. By default, Triangular is selected, which is the “safest“ mode to use if there is any possibility of doing additional processing on your file. Rectangular mode introduces an even smaller amount of dither noise, but at the expense of additional quantization error. The three Pow-r modes offer successively higher amounts of dithering, but with the noise pushed above the audible range. Note that dithering is a procedure that should only be applied once to any given audio file. If you plan to do further processing on your rendered file, it’s best to render to 32-bit to avoid the need for dithering at this stage. In particular, the Pow-r modes should never be used for any material that will be sent on to a further mastering stage — these are for final output only. (Please note that the Pow-r modes are not available in the Intro and Lite Editions.)
• Encode MP3 — If activated, a CBR 320 kbps MP3 file is created. It is possible to export PCM and MP3 simultaneously. If neither toggle is enabled, the Export button will be disabled.

4.1.3.4 Video Rendering Options

(Note: video rendering is not available in the Intro and Lite Editions.)

In addition to settings for audio rendering, the Export dialog provides additional options for rendering video:

• Create Video — If this is activated, a video file will be created in the same directory as your rendered audio. Note that this option is only enabled if you have video clips in the Arrangement View. Also, it is not possible to only render a video file — enabling video rendering will always produce a video in addition to rendered audio.
• Video Encoder — This chooser allows you to select the encoder to use for the video rendering. The choices you have here depend on the encoders you have installed.
• Video Encoder Settings — This button opens the settings window for the selected encoder. Note that the settings options will vary depending on the encoder you have chosen. Certain encoders have no user-configurable options. In this case, the Edit button will be disabled.

Once you’ve made your selections and clicked Export to begin the rendering process, audio rendering will begin. After the audio rendering is complete, the video will be rendered. Note that, depending on the encoder used, video rendering may occur in more than one pass. Live will display a progress bar that will indicate the status of the process.

Unless you’ve specified a special window size or aspect ratio in the encoder settings, the rendered video file will play back exactly as it appeared during real time playback in Live. The video file will also contain the rendered audio.

For more information about working with video in Live, see the chapter on video (see ‘Working with Video’).

4.1.3.5 Real-Time Rendering

Normally, rendering happens as an offline process. But if your set contains an External Audio Effect (see ‘External Audio Effect’) or External Instrument (see ‘External Instrument’) that routes to a hardware effects device or synthesizer, the rendering process is a bit different. In this case, rendering the Main output happens in real time. If you render single tracks, all tracks that don’t route to an external device anywhere in their signal paths will be rendered offline. Then, any tracks that do access these devices will be rendered in real time. Live will automatically trace each track’s signal flow and detect if real-time rendering is necessary. You’ll then be presented with several options when you start to render:

• Skip — By default, Live will wait for ten seconds before starting a real-time render. This should allow any sound from external devices to fade out, but if you need more time (for example, if you’re waiting for a long reverb tail), you can increase the wait time by typing a new number in the number box. On the other hand, if you’re sure that your external devices aren’t making any sound, you can speed the process along by pressing “Skip,“ which will start the render immediately.

After the render has begun, the dialog changes to show a recording progress bar:

• Auto-Restart on drop-outs — Rendering in real-time requires somewhat more CPU power than non-real-time rendering, and in some cases drop-outs (small gaps or glitches in the audio) can occur. Live detects when drop-outs happen, and rendering will start again from the beginning if the Auto-Restart option is enabled.
• Restart — manually restarts the rendering process.
• Cancel — stops the rendering process and deletes the partially rendered file.

The number of rendering attempts (if there has been more than one) will also be listed in the dialog box. If you find that dropouts and restarts keep happening, you should close other running applications to allow more processing power for rendering. Please see the chapter on computer audio resources (see ‘Computer Audio Resources and Strategies’) for more tips on improving performance.

4.2.1 Exporting MIDI Files

Live MIDI clips can be exported as Standard MIDI files. To export a MIDI clip, use the File menu’s Export MIDI Clip command. This command will open a file-save dialog, allowing you to choose the location for your new MIDI file.

Exporting a MIDI file is different from saving the clip as a Live Clip.

4.4.1 Creating, Opening and Saving Sets

Use the File menu’s New Live Set command to create new Live Sets, and the Open Live Set or Open Recent Set command to open existing ones. In the browser, you can double-click or press Enter on a Live Set to open it.

The File menu’s Save Live Set command saves the current Live Set exactly as it is, including all clips and settings.

You can use the Save Live Set As command to save the current Live Set under a different name and/or in a different directory location, or the Save a Copy command to create a copy of the current Live Set with a new name and/or new directory location.

4.4.2 Merging Sets

Live makes it easy to merge sets, which can come in handy when combining work from different versions or pieces. To add all tracks (except the return tracks) from one Live Set into another, drag the set from the browser into the current set, and drop it onto any track title bar or into the drop area next to or below the tracks. The tracks from the dropped set will be completely reconstructed, including their clips in the Session and Arrangement View, their devices, and their automation.

If you prefer to import individual tracks from a set, you can unfold the Live Set in the browser just as if it were a folder.

You can now drag the individual tracks and drop them as described at the beginning of this section. Any grooves (see ‘Using Grooves’) that were saved with your set are also available as a folder within the unfolded Set.

If you only want the device chain (e.g., a device and its audio or MIDI effects) from another set, you can drag in the Devices icon from the set in the browser.

You can also drag Group Tracks (see ‘Group Tracks’) and nested Group Tracks from Live’s browser. Group Tracks can be expanded in the browser, allowing you to load an individual track from within.

In addition to unfolding sets, you can further unfold the tracks within the sets to access the individual Session View clips that were used on the track:

You can browse, preview and import Session View clips from the set as if they had been stored as individual Live Clips. This means that any Live Set can serve as a pool of sounds for any other, suggesting creative reuse and crossover.

4.4.3 Exporting Session Clips as New Sets

You can export a selection of Session View clips as a new Live Set by dragging them to the browser. To export a set, first click and drag, or use the Shift or CTRL(Win) / ALT(Mac) modifiers, to select more than one Session View clip. Then, simply drag and drop the clips into the Current Project or any user folder, where you can either confirm Live’s suggested name or type in one of your own.

4.4.4 Template Sets

Use the File menu’s Save Live Set As Default Set… command to save the current Live Set as the default template. Live will use these settings as the initialized, default state for new Live Sets. You can use this to pre-configure:

• Your multichannel input/output setup.
• Preset devices, like EQs and Compressors, in every track.
• Computer key mappings (see ‘Computer Keyboard Remote Control’).
• MIDI mappings (see ‘MIDI Remote Control’).

Note that any Live Set in Live’s browser can be set as the default Live Set via the Set Default Live Set context menu entry.

In addition to this “master” default template, you can create additional template sets for different types of projects, each with their own unique configuration of tracks, devices, etc. To do this, save the current Live Set using the File menu’s Save Live Set As Template… command. Any sets saved as a template will appear in the browser’s Templates category and the Templates folder in the User Library. (Note that the User Library’s Templates folder is automatically created the first time a template Set is saved.) These sets will then function as templates: they will load with the configuration you saved, but with the name Untitled.als, ready to be used as a new set.

4.4.5 Viewing and Changing a Live Set’s File References

To view a list of the files referenced by the current Live Set, choose the Manage Files command from the File menu, click the Manage Set button, and then click the View Files button. Live will display one line for each file used by the Live Set. To list all clips or instruments in the Live Set where the file is actually used, click the triangle to expand the line. Here is what you can do:

• Replace a file — Dragging a file from the browser and dropping it on an entry in the list makes the Live Set reference the new file instead of the old one. For samples used in audio clips, Live retains the clip properties; the Warp Markers are kept if the new sample has the same or a greater length as the old sample and discarded otherwise. Please note that replacing a sample will change all clips in your set that reference this sample.

• Hot-swap files — Using the Hot-Swap button at the left-hand side of each entry, you can quickly browse through alternatives for the file that is currently being referenced. This is like dragging files here, only quicker.

• Edit a referenced sample — using an external application (which can be chosen in the Preferences’ File/Folder tab). Clicking the Edit button will open the referenced sample in the external application. The sample will remain offline as long as the Edit switch is engaged. For samples used in audio clips, the current set of Warp Markers is retained only if the sample length remains the same as before. Note that the Edit button is only available for samples, not for other types of files such as Max for Live devices (see ‘Max for Live’).

• View a file’s location — The Location column states if a file is missing (see ‘Locating Missing Files’), or if it resides in your User Library, a Project or somewhere else (“external“). When unfolded, the entry shows the specific places in the Set where the file is used.

4.5.1 Projects and Live Sets

When you save a Live Set under a new name or in a new folder location, Live will create a new project folder and store the Live Set there — unless you are saving the Live Set into an existing Live Project. Let’s look at an example to illustrate this process:

We have recorded some audio into a new Live Set. We now save the Live Set under the name “Tango“ on the Desktop. The Desktop is available in the browser because we have previously added it as a user folder. Here is the result as displayed by the Live browser:

The project folder (“Tango Project“) contains the Live Set (“Tango.als“) and a Samples folder, which in turn contains a Recorded folder with two samples in it. Note that the current Project is also indicated in the title bar of Live’s application window.

Next, we record another track into our Project. We save the modified version of the Live Set under a new name so that we do not lose the previous version. Accepting the Save As command’s default suggestion, we store the new version of the song in the Tango Project folder.

The Tango Project now contains two Live Sets, and its Samples/Recorded folder contains the samples used by both of them.

And now for something completely different: We choose the File menu’s New Live Set command and record a samba tune. As this has nothing to do with our tango dabblings, we decide to save it outside the Tango Project folder, say on the Desktop. Live creates a new project folder named Samba Project next to Tango Project.

So far we have seen how to create Live Projects and save versions of Live Sets into them. How do we open a Project? Simply by opening any of its contained Live Sets. Double-clicking “Tango with Piano.als“ opens that Set and the associated Project — as displayed in Live’s title bar.

Let’s suppose that, in the course of our work on “Tango with Piano.als,“ we get sidetracked: The piece evolves towards something entirely different, and we feel that it should live in a Project of its own. So, we “Save As…“ under a new name and in some location outside the current Project, say the Desktop:

Note that the new project folder has no Samples folder (yet). “Electro with Piano.als“ is still referencing the piano sample from the original Tango Project. There is nothing wrong with this except for when the Tango Project is moved away or deleted; then “Electro with Piano.als“ will be missing samples. You can prevent this by collecting external files (see ‘Collecting External Files’). Even after the fact, Live’s tools for searching missing files (see ‘Locating Missing Files’) can help solve this problem.

There is actually no need to keep a Project’s Live Set exactly one level below the Project itself. Within a project folder, you can create any number of sub-folders and move files around to organize them as desired, although you many need to use the File Manager to “teach“ the Project about the changes you’ve made (see ‘How Can I Save Presets Into My Current Project?’).

In general, Live will do what it can to prevent situations such as orphaned (Project-less) Live Sets, which have the potential of confusing both the user and Live’s file management tools. It cannot, however, control situations in which Sets or files are moved out of order and become disorganized via the Explorer (Windows)/Finder (Mac).

A note for users of older Live versions: Live does not allow overwriting Live Sets that were created by older major versions to prevent compatibility problems. Instead, you will be requested to “Save As…“. Doing this will insure that the newly saved Live Sets reside in project folders.

4.5.2 Projects and Presets

By default, new instrument and effect presets are stored in your current Project. At times however, it may make more sense to save a preset to another folder or to your User Library, so that you can access them from other Projects. You can drag a preset between folders after saving it (see ‘Saving Presets’), or simply drag the title bar of the device over a folder in the sidebar, wait for the content pane to open, and then drop it into the content pane, adding it to the folder.

When saving presets that contain samples to a new location, Live may copy the samples depending on the settings in the Collect Files on Export chooser in the Library Preferences. You can then type in a new name for the device or confirm the one suggested by Live with Enter.

4.5.3 Managing Files in a Project

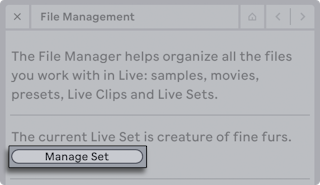

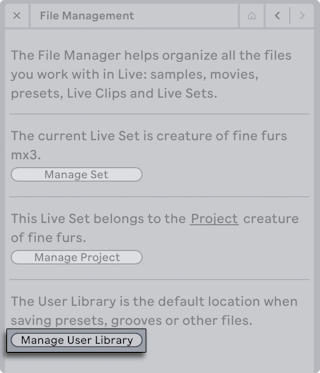

Live’s File Manager offers several convenient tools for managing Projects. Once you’ve opened a Live Set that is part of the Project you wish to manage, choose the Manage Files command from the File menu, and then click the Manage Project button. The File Manager will present you with an overview of the Project’s contents and tools for:

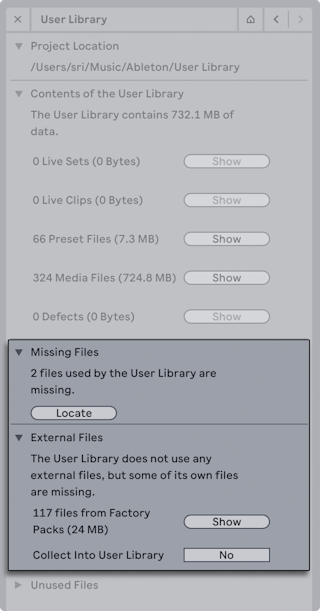

• locating files that the Project is missing;

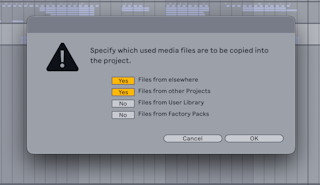

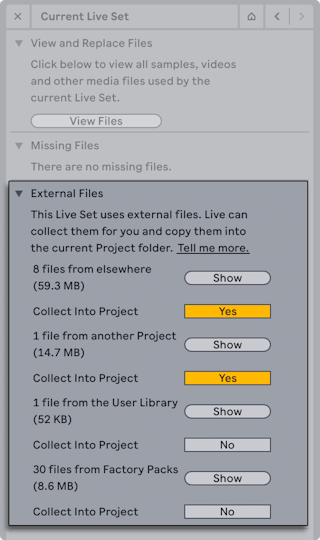

• collecting external files into the Project (see ‘Collecting External Files’);

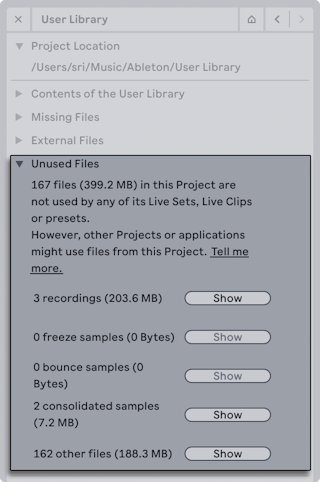

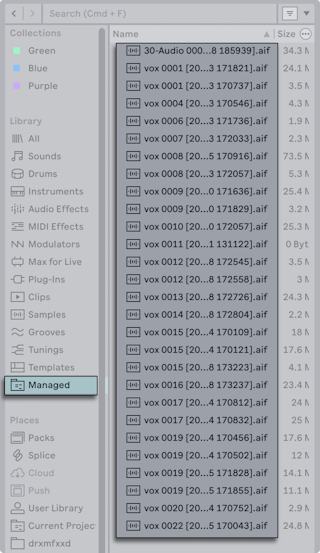

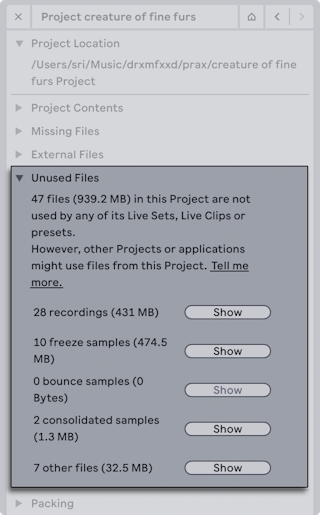

• listing unused files in the Project (see ‘Finding Unused Files’);

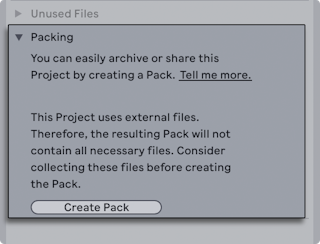

• packing a Project in Pack format (see ‘Packing Projects into Packs’);

4.6.1 Manual Repair

To manually fix a broken file reference, locate the missing file in the browser, drag it over to the File Manager and drop it on the respective line in the list of missing files. Note that Live will not care if the file you offer is really the file that was missing.

4.6.2 Automatic Repair

Live offers a convenient automatic search function for repairing file references. To send Live on a search, click the Automatic Search section’s Go button. To reveal detailed options for guiding the automatic search function, click the neighboring triangular-shaped button.

• Search Folder — includes a user-defined folder, as well as any sub-folders, in the search. To select the folder, click the associated Set Folder button.
• Search Project — includes this Set’s project folder in the search.
• Search Library — includes the Live Library in the search.

For each missing file, the automatic search function may find any number of candidates. Let’s consider the following cases:

• No candidate found — you can choose another folder and try again, or locate the sample manually.
• One candidate found — Live accepts the candidate and considers the problem solved.
• Several candidates found — Live requires your assistance: Click the Hot-Swap button (i.e., the leftmost item in every line of the list of missing files) to have the browser present the candidates in Hot-Swap Mode. You can now double-click the candidates in the browser to load them, as the music plays if you like.

4.7.1 Collect Files on Export

When you save Live Clips, device presets or tracks by dragging them into the Browser, Live manages the copying of associated files based on the selection made in the Collect Files on Export chooser in the Library Preferences. This chooser provides the following options:

• Always, the default setting, will copy files into the same folder as the clip, preset, or track without notification.
• When Ask is selected, Live provides a dialog box with options for copying files.
• Never means that files will not be copied when saving.

4.11.1 How Do I Create a Project?

A Project is automatically created whenever you save a Live Set, except when you save it into a preexisting Project.

4.11.2 How Can I Save Presets Into My Current Project?

You can save presets directly to the current project by dragging from the device’s title bar and dropping into the Current Project label in the browser. You can then use the File Management tools, collect any referenced samples, etc.

4.11.3 Can I Work On Multiple Versions of a Set?

If you’d like to work on different versions of the same Live Set, save them into the same Project. This will usually be the Project that was created when you saved the first version of the Live Set. If a Project contains multiple Live Sets it will only collect one copy of any samples used by the various versions, which can save disk space and help with organization.

4.11.4 Where Should I Save My Live Sets?

You can save Live Sets anywhere you want, but saving to pre-existing Project folders can cause problems, and should be reserved for special cases. You should only save a Live Set to an existing Project if it is somehow related to the Project — for example, an alternate version of a song that’s already in the Project.

4.11.5 Can I Use My Own Folder Structure Within a Project Folder?

You can organize your files any way you want within a Project, but you’ll need to use the File Manager to relink the files that you’ve moved around:

1. In Live’s Browser or via your operating system, reorganize the files and folders within your Project folder.

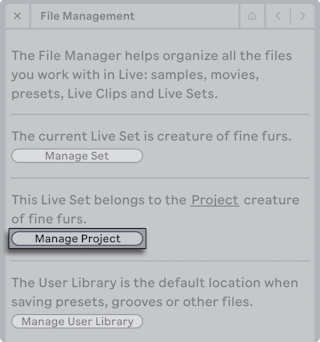

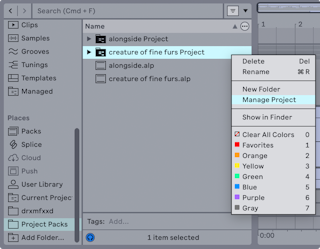

2. Navigate to the Project folder in the Browser and choose Manage Project via the right-click(Win) / CTRL-click(Mac) context menu.
3. If you’ve changed the original location of any samples used in the Project, the Missing Samples section of the File Manager will indicate this. Click the Locate button to search for the samples.
4. Since you know that your samples are all in the Project folder, unfold Automatic Search. Then enable the Search Project and Fully Rescan Folders options. Finally, click Go to initiate the search.

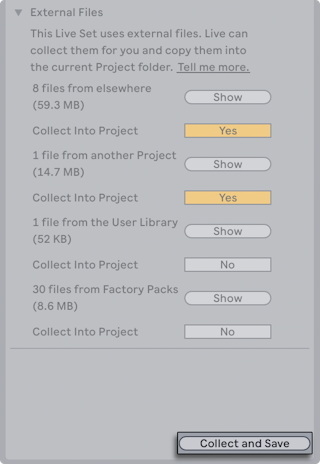

5. When searching is complete, click Collect and Save at the bottom of the File Manager to update the Project.
